1oz Copper Dual-Sided Printed Wiring Board Featuring Surface OSP for Results

Product Description:

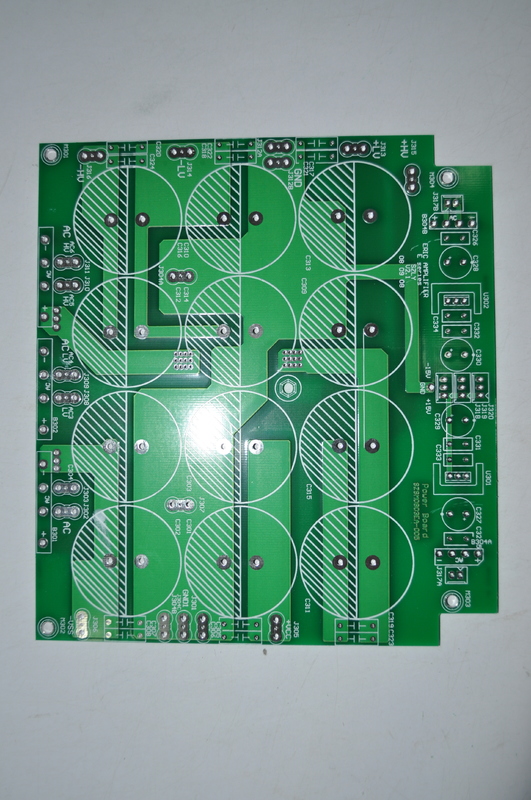

A Double-Sided PCB, also known as a Dual-Sided PCB or Double-Plated PCB, is a type of printed circuit board that features conductive copper layers on both the top and bottom sides of the board. This design allows for increased routing complexity and higher component density compared to single-sided PCBs.

The Double-Sided PCB product available is specifically designed with a surface finish of OSP (Organic Solderability Preservative), offering excellent solderability and shelf life protection for the exposed copper traces. This surface finish enhances the reliability and durability of the PCB, making it suitable for various electronic applications.

One of the unique features of this Double-Sided PCB is its special requirement of being Halogen Free and incorporating Impedance Control. The Halogen Free attribute ensures that the PCB is environmentally friendly and free from harmful halogen compounds, making it compliant with industry regulations and standards. Additionally, the Impedance Control capability allows for precise control of signal integrity and impedance matching, crucial for high-speed and sensitive electronic circuits.

When it comes to materials, this Double-Sided PCB is constructed using FR4, a widely used and versatile substrate material in the PCB industry. FR4 offers excellent electrical insulation properties, mechanical strength, and thermal stability, making it ideal for various electronic applications that require reliability and performance.

This particular Double-Sided PCB product features two layers, providing a balance between complexity and cost-effectiveness. The two-layer design allows for efficient routing of traces, power planes, and signal lines while still maintaining a manageable manufacturing cost.

Moreover, the Double-Sided PCB incorporates special technology for Impedance Control with a tolerance of ±10%. This technology ensures that the electrical characteristics of the PCB, such as signal propagation delay and attenuation, are precisely controlled within tight tolerances, meeting the requirements of high-frequency and high-speed applications.

In conclusion, the Double-Sided PCB with OSP surface finish, Halogen Free/Impedance Control special requirement, FR4 material, two layers, and Impedance Control technology offers a reliable and high-performance solution for a wide range of electronic designs. Whether you need a Double-Sided PCB for industrial equipment, consumer electronics, telecommunications, or any other application requiring a compact and efficient circuit board, this product is designed to meet your needs with quality and precision.

Features:

• Product Name: Double Sided PCB
• Other Service: PCB Design/PCB Assembly
• Special Requirement: Halogen Free/impedance Control
• Number Of Layers: 2
• Min. Hole To Copper: 0.2mm
• Conductor Space: 5 Mil

Technical Parameters:

Applications:

The surface finishing options including HASL, OSP, ENIG, Immersion Gold, and lead-free finishes provide flexibility in meeting specific project requirements. Whether it's for a 1.2m double-sided PCB or a 1.5m double-sided PCB, these PCBs can be customized to suit different applications.

One of the key features of these double-sided PCBs is the special technology of impedance control with a tolerance of ±10%. This ensures signal integrity and reliability, making them ideal for high-frequency applications where maintaining signal integrity is crucial.

Product Application Occasions and Scenarios:

1. Consumer Electronics: Double sided PCBs are commonly used in consumer electronic devices such as smartphones, tablets, and laptops due to their compact size and high reliability.

2. Industrial Automation: In industrial automation systems, bi-layer PCBs play a critical role in controlling and monitoring processes, ensuring smooth operation and high efficiency.

3. Automotive Industry: Double sided PCBs are essential components in modern vehicles, used in various systems including engine control units, infotainment systems, and safety features.

4. Telecommunications: With the increasing demand for high-speed data transmission, double-sided PCBs with impedance control are widely used in telecommunications equipment to ensure reliable signal transmission.

5. Medical Devices: In medical equipment where precision and reliability are paramount, bi-layer PCBs are used in devices such as monitoring systems, diagnostic equipment, and imaging devices.

Overall, the double-sided PCB with a finished copper thickness of 35um, FR4 materials, and special tech of impedance control is a versatile solution for a wide range of applications, providing reliability, performance, and flexibility in design.

Customization:

Product Customization Services for Double-Sided Printed Board:

Other Service: PCB Design/PCB Assembly

Type: Offline

Copper: 1oz

Solder Resist Color: Green

Special Technology: Standard
